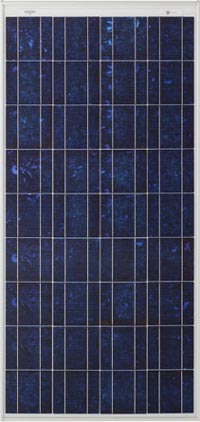

BP 3125

The BP 3125 photovoltaic module is designed to provide superior value and performance for remote home, industrial, and residential use. With time-tested multicrystalline silicon solar cells and 125 watts of nominal maximum power, it provides cost-effective power for DC loads or, with an inverter, AC loads. With 36 enhanced-efficiency cells it charges 12V batteries (or multiples of 12V) efficiently in virtually any climate. Its unique IntegraBus™ technology provides added reliability through reliable outside bussing and by reducing diode and module temperature during module shading. The BP 3125 is used in remote systems for applications including telecommunications, pumping and irrigation, remote villages and homes, and land-based aids to navigation. It is also used in utility-grid supplemental systems for residences and commercial buildings.

For complete product information, download the BP 3125 data sheet.

Specifications
See data sheet for full details

BP 3125

Typical Electrical Characteristics
Maximum Power (Pmax)
125W

Voltage at Pmax (Vmp)
17.6V

Current at Pmax (Imp)
7.1A

Warranted minimum Pmax
118.75W

Short-circuit current (Isc)
7.54A

Open-circuit voltage (Voc)
22.1V

Temperature coefficient of Isc

(0.065 ± 0.015)% / deg. C

Temperature coefficient of Voc
-(80 ± 10)mV / deg. C

Temperature coefficient of Power

-(0.5 ± 0.05)% / deg. C


Mechanical Characteristics
Dimensions
26.5" x 59.4" x 1.97"

Weight
26.5 lbs

Clear Anodized Universal Frame
